Warehouse Shelf Upright Rack Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Details
Description
Warehouse shelf upright roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

We have experience of exporting our pallet racking roll forming machine to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming machine, step beam roll forming machine and shelf panel roll forming machine etc.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

Application
Real Case A
Real Case B
Whole Production Line of Pallet Upright Rack Roll Forming Machine
Technical Specifications

Pallet Racking Roll Forming Machine

Machinable Material :

A) Galvanized Coil

Thickness(MM):1.5/1.8/2.0/2.5/2.75/3.0

B) PPGI

C) Cold-rolled Steel

D) Stainless Steel



E) Aluminum



F) Carbon steel Coil



Yield strength :

250 - 350 Mpa

Tensil stress :

350 Mpa-500 Mpa

Nominal forming speed(M/MIN)

10-20

* Or according to your requirement

Forming station :

18-26

* According to your profile drawings

Decoiler :

Manual decoiler

* Hydraulic decoiler (Optional)

Punching system

Hydraulic punching station

* Punching press (Optional)

Main machine motor brand :

Shanghai Dedong (Sino-Germany Brand)

* Siemens (Optional)

Driving system :

Chain drive

* Gearbox drive (Optional)

Machine structure:

Forged Iron station

* Cantilever type (Optional)

Rollers’ material :

Steel #45

* GCr 15 (Optional)

Cutting system :

Post-cutting

* Pre-cutting (optional)

Frequency changer brand :

Yaskawa

* Siemens (optional)

PLC brand :

Siemens

Power supply :

380V 60Hz

* Or according to your requirment

Machine color :

Industrial blue

* Or according to your requirment

Q&A

1. Q: What kinds of experience do you have in producing pallet rack roll forming machine?

A: We have exported pallet rack production line to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture Upright beam roll forming machine, Box beam roll forming machine, Step beam roll forming machine and Shelf panel roll forming machine etc. We are confident to solve your shelve problem.



2. Q: How many sizes can produce this machine?

A: We adopt cast iron structure or cantilever structure with automatic width-change and height-change system. For upright rack beam, our customer usually make 3-4 sizes in one machine. We would check your profile drawings to meet your needs. In this way, we will greatly reduce your cost and time.



3.Q: What is delivery time of this machine?

A: 80 days to 100 days depends on your drawing.



4. Q: What is your machine speed?

A: Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. In addition, considering the complicated punch holes, we recommend that you use a separate punch line to increase production speed, and it’s more cost-effective



5. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory-self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.



6. Q: What is your after-sales service system?

A: We don’t hesitate to give you a 2 years warranty period for whole lines, 5 years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.





Purchase Service

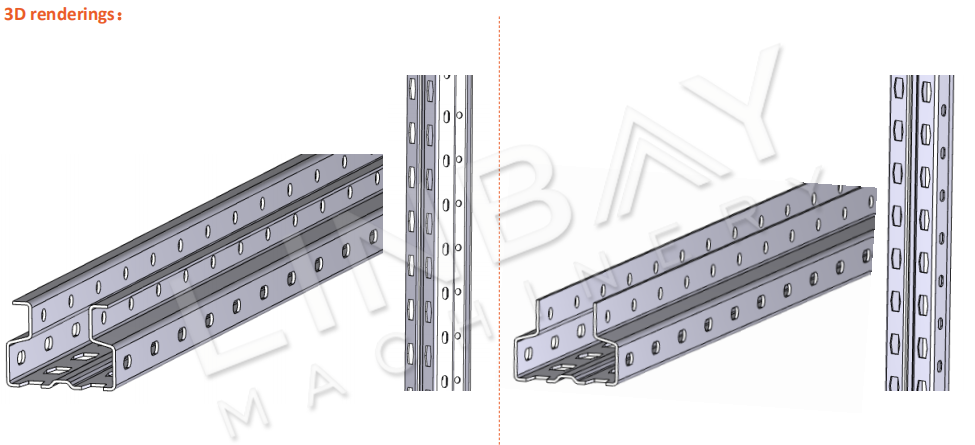

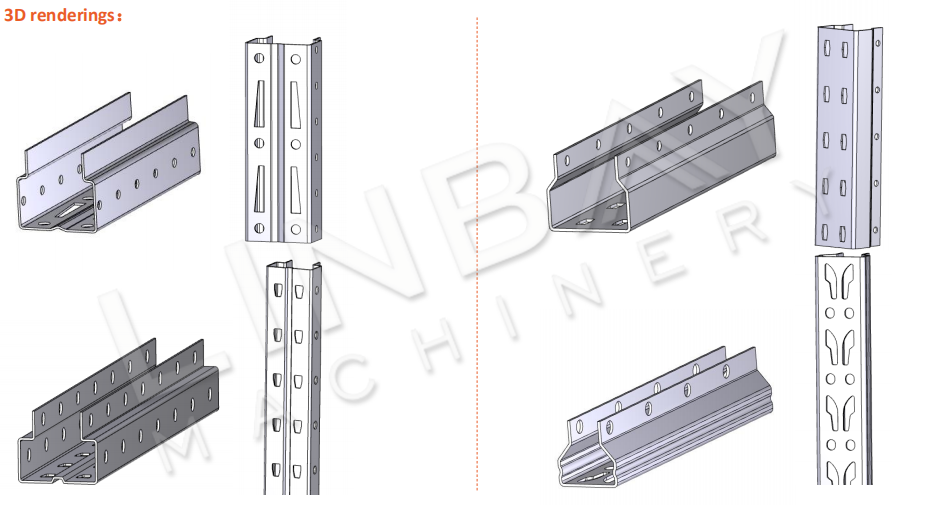

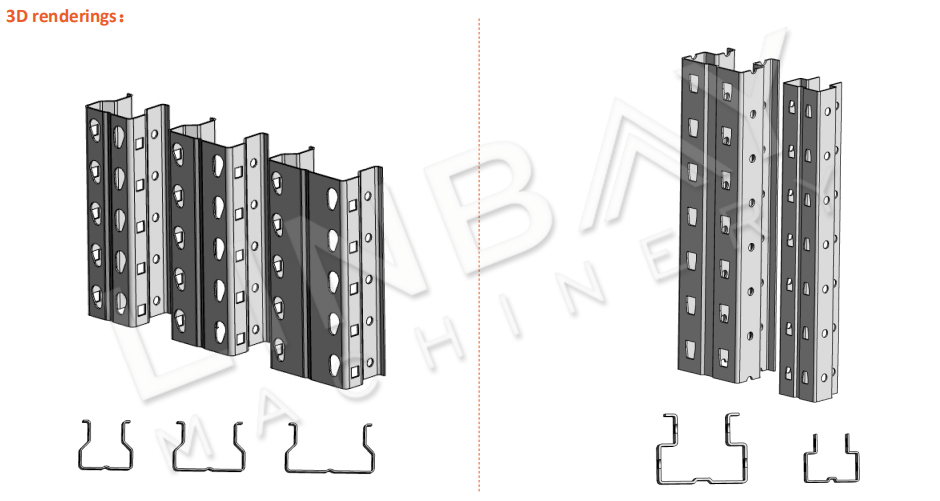

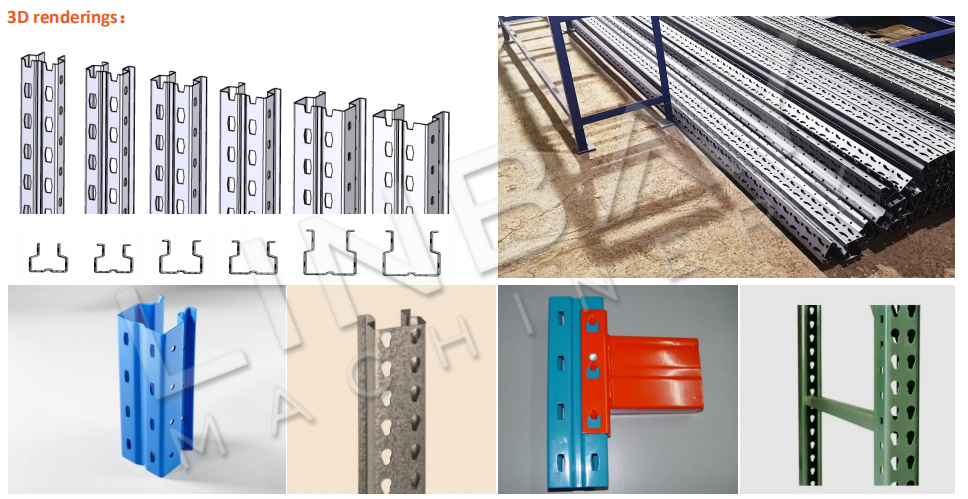

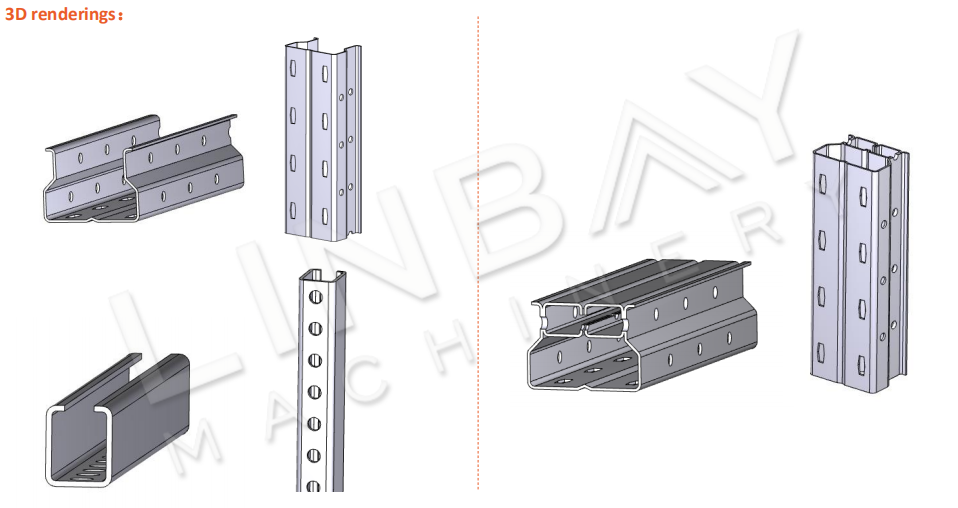

Profile drawings
Optional configuration
  • Out table
    • Non-powered
    • Auto-stacker
    •
    •
    •
    •
  • Cutting
    • Saw cutting
    • fast flyting cutting
    •
    •
    •
    •
  • Driving
    • chain driving system
    • gearbox driving system
    • Gearbox with couplings
    •
    •
    •
    •
  • Stands
    • Torri Stands
    • Forged Iron Stands
    • Wall Panel
    • ruler
    •
    •
    •
    •
  • Punching
    • Hydraulic punching station
    • Fast Roller Punching system
    • Punching press
    •
    •
    •
    •
  • Feeding
    • Servo feeder
    • Leveler
    •
    •
    •
    •
  • Decoiler
    • Motorized&Hydraulic decoiler
    • Double head motorized decoiler
    • Manual Decoiler
    •
    •
    •
    •
